Yaman Steel stands out as a trusted manufacturer and supplier of Titanium Grade 2 Forged Fittings based in Mumbai, India, serving high-performance industrial needs across the globe. Our fittings are celebrated for their remarkable corrosion resistance, lightweight strength, and impressive longevity. Crafted with cutting-edge forging techniques and rigorous quality control, our Titanium Gr 2 forged fittings are precision-engineered to meet international standards, ensuring reliable performance even in the toughest environments. With a strong commitment to quality, technical know-how, and timely delivery, we’ve become the go-to supplier for industries like chemical, marine, aerospace, and power generation.
Titanium Grade 2 is essentially pure titanium, featuring controlled amounts of oxygen, iron, carbon, nitrogen, and hydrogen. This well-balanced chemical makeup grants it exceptional corrosion resistance, especially in oxidizing and mildly reducing settings. On the mechanical side, Titanium Gr 2 boasts good tensile strength, moderate yield strength, and excellent ductility. It also shines with outstanding toughness, low density, and high fatigue resistance. These characteristics ensure that it is easy to form, weld, and maintain long-lasting performance under various temperature and pressure conditions. These flanges are crafted from carbon steel alloys, which mainly consist of iron and carbon, along with carefully controlled amounts of manganese, silicon, and other elements to boost strength and hardness. The carbon content plays a key role in providing excellent mechanical properties, including high tensile strength, good yield strength, and impressive load-bearing capacity. Plus, they offer great machinability, impact resistance, and structural stability. In high-pressure environments, these flanges perform exceptionally well and promise a long service life when used under the right conditions.
| Standards | ASTM B381 / ASME SB381 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Thread | NPT, BSPT, BSPP |
| Test Certificates |
|

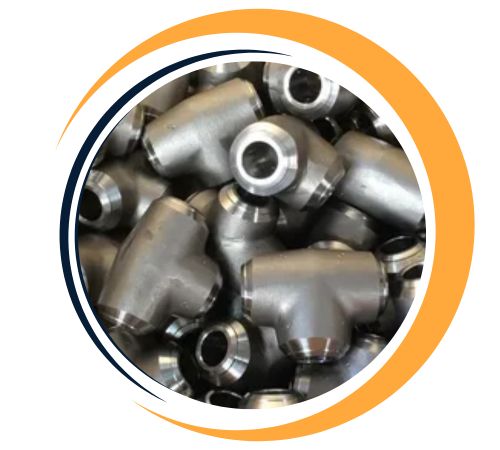

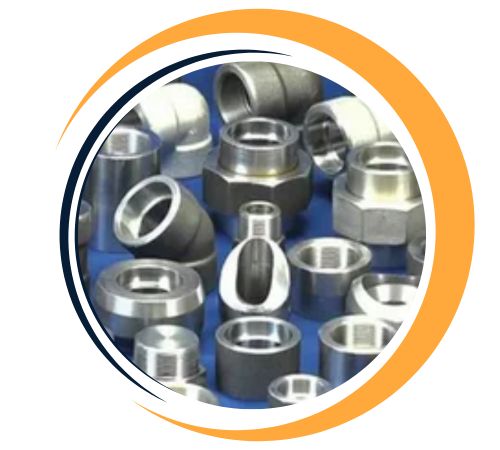

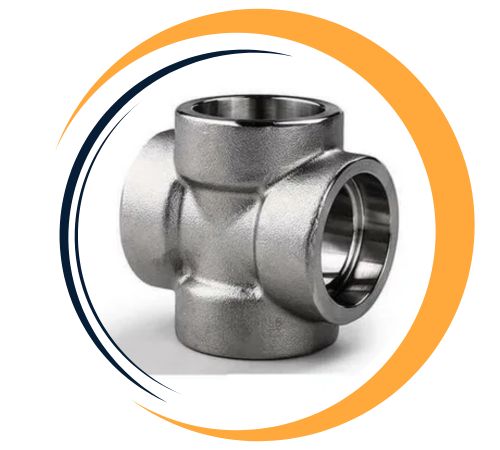

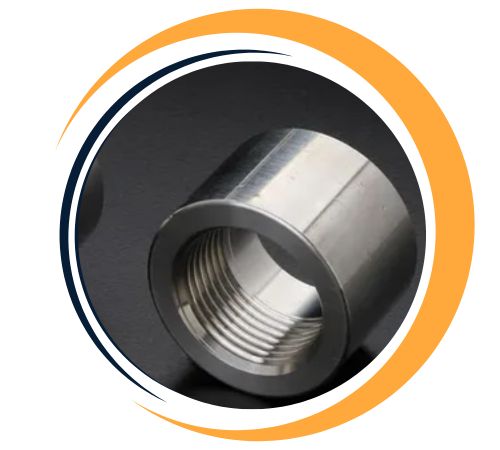

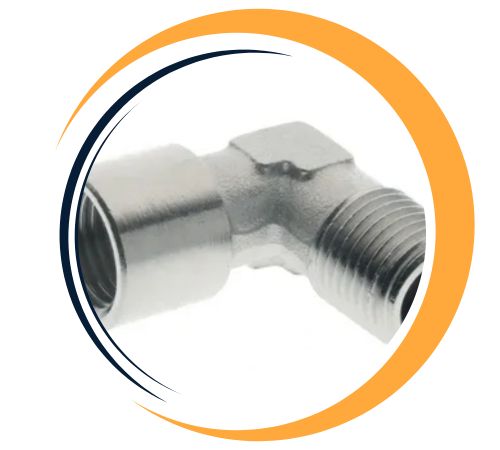

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducer Inserts, Barrel Nipple, Unions, Bushing, Socket Weld / Screwed-Threaded Fittings, Plugs |
| Elements | Composition, % |
| Carbon [C] | ≤0.35 |
| Manganese [Mn] | 0.60-1.05 |
| Phosphorus [P] | ≤0.35 |
| Sulfur [S] | ≤0.40 |
| Silicon [Si] | 0.10-0.35 |
| Copper [Cu] | ≤0.40 |
| Nickel [Ni] | ≤0.40 |
| Chromium [Cr] | ≤0.30 |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Nom, Pipe Size | Sock, Bore Diameter B | Depth of Sock, Min | Wall Thickness Minimum | Bore Diameter of Fitting D | Centre to Bottom of Socket | Laying Lengths | Tolerances, ± | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000# | 6000# | 90º Ells, Tee & Crosses | 45º Ell | Couplings | Half Couplings | ||||||||||||
| A | A | E | F | A | E | F | |||||||||||
| Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | 3000# | 6000# | ||||||||
| 1/8” | .420 .430 | 3/8 | .125 | .095 | .135 | .124 | .254 .284 | .141 | 7/16 | 7/16 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 1/4 | .555 .565 | 3/8 | .130 | .119 | .158 | .145 | .349 .379 | .235 | 7/16 | 17/32 | 5/16 | 5/16 | 1/4 | 5/8 | .03 | .06 | .03 |
| 3/8 | .690 .700 | 3/8 | .138 | .126 | .172 | .158 | .478 .508 | .344 | 17/32 | 5/8 | 5/16 | 7/16 | 1/4 | 11/16 | .06 | .12 | .06 |
| 1/2 | .855 .865 | 3/8 | .161 | .147 | .204 | .188 | .607 .637 | .451 | 5/8 | 3/4 | 7/16 | 1/2 | 3/8 | 7/8 | .06 | .12 | .06 |
| 3/4 | 1.065 1.075 | 1/2 | .168 | .154 | .238 | .219 | .809 .839 | .599 | 3/4 | 7/8 | 1/2 | 9/16 | 3/8 | 15/16 | .06 | .12 | .06 |
| 1 | 1.330 1.340 | 1/2 | .196 | .179 | .273 | .250 | 1.034 1.064 | .800 | 7/8 | 1-1/16 | 9/16 | 11/16 | 1/2 | 1-1/8 | .08 | .16 | .08 |
| 1-1/4 | 1.675 1.685 | 1/2 | .208 | .191 | .273 | .250 | 1.365 1.395 | 1.145 | 1-1/16 | 1-1/4 | 11/16 | 13/16 | 1/2 | 1-3/16 | .08 | .16 | .08 |
| 1-1/2 | 1.915 1.925 | 1/2 | .218 | .200 | .307 | .281 | 1.595 1.625 | 1.323 | 1-1/4 | 1-1/2 | 13/16 | 1 | 1/2 | 1-1/4 | .08 | .16 | .08 |
| 2 | 2.406 2.416 | 5/8 | .238 | .218 | .374 | .344 | 2.052 2.082 | 1.674 | 1-1/2 | 1-5/8 | 1 | 1-1/8 | 3/4 | 1-5/8 | .08 | .16 | .08 |
| 2-1/2 | 2.906 2.921 | 5/8 | .301 | .276 | .375 | 2.439 2.499 | 1-5/8 | 1-1/8 | 3/4 | 1-11/16 | .10 | .20 | .10 | ||||
| 3 | 3.535 3.550 | 5/8 | .327 | .300 | .438 | 3.038 3.098 | 2-1/4 | 1-1/4 | 3/4 | 1-3/4 | .10 | .20 | .10 | ||||
| 4 | 4.545 4.560 | 3/4 | .368 | .337 | .531 | 3.996 4.055 | 2-5/8 | 1-5/8 | 3/4 | 1-7/8 | .10 | .20 | .10 | ||||
| ASTM B381 / SB381 | Standard Specification for Titanium and Titanium Alloy Forgings |
| BS21 | Threading. |
| BS3799 | Specification for Forged fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged fittings socket-weld and threaded. Socket Weld and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Titanium fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Yaman Steel is the largest manufacturer and exporter of Pipe, Fittings, Flanges in Mumbai, India, known for delivering high-quality products to clients across the globe. With state-of-the-art manufacturing facilities and a team of skilled professionals, the company ensures flanges with superior strength, durability, and reliability that meet international standards. Yaman Steel offers a wide range of sizes, grades, and specifications, catering to industries such as oil and gas, petrochemical, power, and water treatment. For inquiries and orders, contact us at sales@pipefittingsflanges.com.
Titanium Gr 2 Forged Fittings find their place in industries where corrosion resistance and weight savings are essential. They’re frequently used in chemical processing plants, heat exchangers, and desalination systems. The marine and offshore sectors rely on these fittings for seawater piping and coastal applications. Moreover, Titanium Gr 2 fittings are perfect for aerospace components, power generation systems, and pharmaceutical processing equipment. Their biocompatibility also makes them a great choice for medical and healthcare applications, ensuring dependable performance, durability, and safety even in challenging environments.
