Highly acclaimed Manufacturer & Exporter presents best offer ever on ANSI/ASME B16.9 Butt weld Reducing Cross

We have specialization to manufacture customized ANSI/ASME B16.9 Butt weld Reducing Cross per customers’ specifications, we welcome small quantity order.

ANSI/ASME B16.9 Butt weld Reducing Cross

Contents

1 ANSI/ASME B16.9 Butt weld Reducing Cross Specification
2 ANSI/ASME B16.9 Butt weld Reducing Cross Dimensions
3 ANSI/ASME B16.9 Butt weld Reducing Cross Godown
4 ANSI/ASME B16.9 Butt weld Reducing Cross Marking & Packaging
5 ANSI/ASME B16.9 Butt weld Reducing Cross Shipping Policy
6 Why choose us for ANSI/ASME B16.9 Butt weld Reducing Cross
7 Best Offer ever on ANSI/ASME B16.9 Butt weld Reducing Cross
8 ANSI/ASME B16.9 Butt weld Reducing Cross Price (at Factory Price)
9 ANSI/ASME B16.9 Butt weld Reducing Cross Uses & Application

We at MD Expots LLP believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ANSI/ASME B16.9 Butt weld Reducing Cross are always our main priority. We are known as specialist in ANSI/ASME B16.9 Butt weld Reducing Cross,70% of our customers are associated with us for their regular requirements of ANSI/ASME B16.9 Butt weld Reducing Cross, Chinese suppliers also procures ANSI/ASME B16.9 Butt weld Reducing Cross from us bcz. We have the specialization & 35 years of experience to manufacture ANSI/ASME B16.9 Butt weld Reducing Cross.

MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of ANSI/ASME B16.9 Butt weld Reducing Cross, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in ANSI/ASME B16.9 Butt weld Reducing Cross & other pipe fittings. our ANSI/ASME B16.9 Butt weld Reducing Cross & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ANSI/ASME B16.9 Butt weld Reducing Cross are corrosion resistance, sturdy and durable. we also supply ANSI/ASME B16.9 Butt weld Reducing Cross & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ANSI/ASME B16.9 Butt weld Reducing Cross. When you place an order with MD Expots LLP, you will receive the products that will stand up in service from people that will stand behind their product.

A cross fitting allows four direction transition in pipeline fields.the fitting not only played a role in conection the cossing pipeline but also can control the volume by designed with different dimension of cross ends,sometimes we also adopt rib to reinforce the mechanical property when face hard woeking conditions.

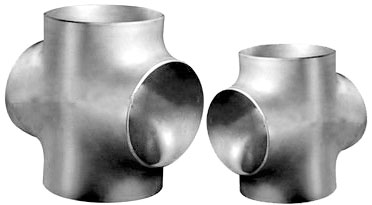

ANSI/ASME B16.9 Butt weld Reducing Cross

ANSI/ASME B16.9 Butt weld Reducing Cross Manufacturer & Exporter

Standards: ANSI – B 16.9
ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
API 590-605
ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”
ASME B16.25 – ‘Buttwelding Ends’
ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’
MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule: Sch 5 TO Sch XXS.
Sizes: 1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” )
Materials: Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW) – straight cross, reducing cross
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

enquiry-button

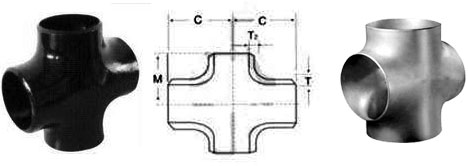

Dimensions

ANSI/ASME B16.9 Butt weld Reducing Cross Manufacturer & Exporter

Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
15×15 1/2×1/2 21.3 18 21.3 18 25 25
15×10 1/2×3/8 21.3 18 17.3 14 25 25
15×8 1/2×1/4 21.3 18 13.7 10 25 25
20×20 3/4×3/4 26.9 25 26.9 25 29 29
20×15 3/4×1/2 26.9 25 21.3 18 29 29
20×10 3/4×3/8 26.9 25 17.3 14 29 29
25×25 1×1 33.7 32 33.7 32 38 38
25×20 1×3/4 33.7 32 26.9 25 38 38
25×15 1×1/2 33.7 32 21.3 18 38 38
32×32 1.1/4×1.1/4 42.4 38 42.4 38 48 48
32×25 1.1/4×1 42.4 38 33.7 32 48 48
32×20 1.1/4×3/4 42.4 38 26.9 25 48 48
32×15 1.1/4×1/2 42.4 38 21.3 18 48 48
40×40 1.1/2×1.1/2 48.3 45 48.3 45 57 57
40×32 1.1/2×1.1/4 48.3 45 42.4 38 57 57
40×25 1.1/2×1 48.3 45 33.7 32 57 57
40×20 1.1/2×3/4 48.3 45 26.9 25 57 57
40×15 1.1/2×1/2 48.3 45 21.3 18 57 57
50×50 2×2 60.3 57 60.3 57 64 64
50×40 2×1.1/2 60.3 57 48.3 45 64 60
50×32 2×1.1/4 60.3 57 42.4 38 64 57
50×25 2×1 60.3 57 33.7 32 64 51
50×20 2×3/4 60.3 57 26.9 25 64 44
65×65 2/1/2×2.1/2 73.0 76 73.0 76 76 76
65×50 2/1/2×2 73.0 76 60.3 57 76 70
65×40 2/1/2×1.1/2 73.0 76 48.3 45 76 67
65×32 2/1/2×1.1/4 73.0 76 42.4 38 76 64
65×25 2/1/2×1 73.0 76 33.7 32 76 57
80×80 3×3 88.9 89 88.9 89 86 86
80×65 3×2.1/2 88.9 89 73.0 76 86 83
80×50 3×2 88.9 89 60.3 57 86 76
80×40 3×1.1/2 88.9 89 48.3 45 86 73
80×32 3×1.1/4 88.9 89 42.4 38 86 70
90×90 3.1/2×3.1/2 101.6 - 101.6 - 95 95
90×80 3.1/2×3 101.6 - 88.9 89 95 92
90×65 3.1/2×2.1/2 101.6 - 73.0 76 95 89
90×50 3.1/2×2 101.6 - 60.3 57 95 83
90×40 3.1/2×1.1/2 101.6 - 48.3 45 95 79
100×100 4×4 114.3 108 114.3 108 105 105
100×90 4×3.1/2 114.3 108 101.6 - 105 102
100×80 4×3 114.3 108 88.9 89 105 98
100×65 4×2.1/2 114.3 108 73.0 76 105 95
100×50 4×2 114.3 108 60.3 57 105 89
100×40 4×1.1/2 114.3 108 48.3 45 105 86
125×125 5×5 141.3 133 141.3 133 124 124
125×100 5×4 141.3 133 114.3 108 124 117
125×90 5×3.1/2 141.3 - 101.6 - 124 114
125×80 5×3 141.3 133 88.9 89 124 111
125×65 5×2.1.2 141.3 133 73.0 76 124 108
125×50 5×2 141.3 133 60.3 57 124 105
150×150 6×6 168.3 159 168.3 159 143 143
150×125 6×5 168.3 159 141.3 133 143 137
150×100 6×4 168.3 159 114.3 108 143 130
150×90 6×3.1/2 168.3 - 101.6 - 143 127
150×80 6×3 168.3 159 88.9 89 143 124
150×65 6×2.1/2 168.3 159 73.0 76 143 121
200×200 8×8 219.1 219 219.1 219 178 178
200×150 8×6 219.1 219 168.3 159 178 168
200×125 8×5 219.1 219 141.4 133 178 162
200×100 8×4 219.1 219 114.3 108 178 156
200×90 8×3.1/2 219.1 - 101.6 - 178 152
250×250 10×10 273.0 273 273.0 273 216 216
250×200 10×8 273.0 273 219.1 219 216 203
250×150 10×6 273.0 273 168.3 159 216 194
250×125 10×5 273.0 273 141.3 133 216 191
250×100 10×4 273.0 273 114.3 108 216 184
300×300 12×12 323.9 325 323.9 325 254 254
300×250 12×10 323.9 325 273.0 273 254 241
300×200 12×8 323.9 325 219.1 219 254 229
300×150 12×6 323.9 325 168.3 159 254 219
300×125 12×5 323.9 325 141.3 133 254 216
350×350 14×14 355.6 377 355.6 377 279 279
350×300 14×12 355.6 377 323.9 325 279 270
350×250 14×10 355.6 377 273.0 273 279 257
350×200 14×8 355.6 377 219.1 219 279 248
350×150 14×6 355.6 377 168.3 159 279 238
400×400 16×16 406.4 426 406.4 426 305 305
400×350 16×14 406.4 426 355.6 377 305 305
400×300 16×12 406.4 426 323.9 325 305 295
400×250 16×10 406.4 426 273.0 273 305 283
400×200 16×8 406.4 426 219.1 219 305 273
400×150 16×6 406.4 426 168.3 159 305 264
450×450 18×18 457 480 457 480 343 343
450×400 18×16 457 480 406.4 426 343 330
450×350 18×14 457 480 355.6 377 343 330
450×300 18×12 457 480 323.9 325 343 321
450×250 18×10 457 480 273.0 273 343 308
450×200 18×8 457 480 219.1 219 343 298
500×500 20×20 508 530 508 530 381 381
500×450 20×20 508 530 457 480 381 368
500×400 20×20 508 530 406.4 426 381 356
500×350 20×20 508 530 355.6 377 381 356
500×300 20×20 508 530 323.9 325 381 346
500×250 20×20 508 530 273.0 273 381 333
500×200 20×20 508 530 219.1 219 381 324

ANSI/ASME B16.9 Butt weld Reducing Cross Godown

MD Expots LLP Flanges Godownwe are the manufacturer of ANSI/ASME B16.9 Butt weld Reducing Cross, we have our own A 3 level 10,000 feet and well equipped warehouse located at Kalamboli, Navi Mumbai, India. We thanks to our skilled staff, we can produce a large number of ANSI/ASME B16.9 Butt weld Reducing Cross that comply with the different current standards. Choosing and selecting our raw materials is one of the keys to our production.



ANSI/ASME B16.9 Butt weld Reducing Cross Marking & Packaging

ANSI/ASME B16.9 Butt weld Reducing Cross Grades Marking
ANSI/ASME B16.9 Butt weld Reducing Cross Marking

ANSI/ASME B16.9 Butt weld Reducing Cross Packaging
ANSI/ASME B16.9 Butt weld Reducing Cross Packaging

While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 Butt weld Reducing Cross as needed with the most suitable & visible marking technique.

Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the ANSI/ASME B16.9 Butt weld Reducing Cross according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ANSI/ASME B16.9 Butt weld Reducing Cross is out of stock, orders may take up to 2-4 weeks to ship. MD Expots LLP will notify buyer if this situation occurs.

Why choose us for ANSI/ASME B16.9 Butt weld Reducing Cross?

1. On-Time Delivery Every Time

2. Competitive Prices

3. High Quality Product

4. Quick Response by Email & by Phone

5. An ISO 9001:2008 Certified Company

We are Experts in exporting ANSI/ASME B16.9 Butt weld Reducing Cross & Other Stainless Steel Flanges to over 45 countries including UAE, UK, Dubai, Iran, Iraq, Qatar, Bahrain, Oman, Yemen, Lebanon, Jordan, Saudi Arabia, Malaysia, Indonesia, Singapore, Australia, New Zealand, USA, Canada, Mexico, Brazil, Netherlands, Germany, Italy, Spain, Serbia, Kuwait, Peru, Nigeria, Poland, South Africa, Denmark, Turkey, Egypt, Venezuela, Kuwait, Madagascar, Angloa & Srilanka & are major pipe Fittings & Flanges Suppliers in Saudi Arabia etc. Our ready stock of ANSI/ASME B16.9 Butt weld Reducing Cross is also available in top countries such as Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. who can help you to buy ANSI/ASME B16.9 Butt weld Reducing Cross, Pipe fittings and joints and can provide you all the information as per your requirements.

Quality assurance is carried throughout the process from the raw material purchasing to processing, packing, storage and transportation. Every process strictly conforms to the ISO 9001:2008. "Quality First" is our promise forever to any of our customers. Our ANSI/ASME B16.9 Butt weld Reducing Cross are 100% inspected before being packed and dispatched & all our materials are tested to International standards. We have 3 levels to check quality of ANSI/ASME B16.9 Butt weld Reducing Cross. We also accept any Third Party of Inspection appointed by our customers, such as Lloyd’s Register, TUV, DNV, BV, SGS, IEI, SAI and etc.

Third Party Inspection

ANSI/ASME B16.9 Butt weld Reducing Cross ManufacturerWe offer to our clients the third party inspection of ANSI/ASME B16.9 Butt weld Reducing Cross from reputed agencies such as LLOYDS, EIL, H&G, TCE, PDIL, MECONS, M.N. DASTUR & Co., Bax council, DNV, Bureau Veritas, DPG, SGS, IRS, and many others.

THIRD PARTY INSPECTION AGENCIES SERVICES UNDER OUR SCOPE
Tecnimont ICB Limited ICB
DET Norske Veritas DNV
Fact Engineering And Design Organisation FEDO
Projects & Developments India Limited PDIL
Baxcounsel Inspection Bureau Pvt. Ltd. Baxcounsel
Bureau Veritas Industrial Services (India) Pvt. Ltd. BVIS
Industrial Consultancy And Inspection Services ICIS
Metallurgical & Engineering Consultants (India) Ltd. MECON
Nuclear Power Corporation Of India Ltd. NPCL
Engineers India Limited EIL
Bharat Heavy Electricals Limited BHEL
UHDE India Limited UHDE
Pipecon Consultants (India) Pvt. Ltd. PIPECON
Indian Boiler Regulations IBR

Best Offer ever on ANSI/ASME B16.9 Butt weld Reducing Cross

We have our own warehouse of 10,000 feet, so we can offer best price in the market. Optimized financial concepts can be offered on request as well.

ANSI/ASME B16.9 Butt weld Reducing Cross Application

MD Expots LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ANSI/ASME B16.9 Butt weld Reducing Cross to meet the customer ultimate requirements in the fields of:

  • Chemical
  • Petrochemical
  • Refineries
  • Fertilizers
  • Power Plant
  • Nuclear Power
  • Oil & Gas
  • Paper
  • Breweries
  • Cement
  • Sugar
  • Oil Mills
  • Mining
  • Construction
  • Shipbuilding
  • Steel Plant
  • Offshore
  • Defence
  • Ports
  • Railway
  • Engineering Co. &
  • Government Org. etc.

ANSI/ASME B16.9 Butt weld Reducing Cross Price

Check below aproximate price for our customers who are intrested to buy ANSI/ASME B16.9 Butt weld Reducing Cross

90 long radius elbow
FOB Price: US $0.5-6 / Piece

short radius sch40 90 degree elbows
FOB Price: US $1.2-2500 / Piece

45 D LONG RADIUS ELBOW
FOB Price: US $1-5000 / Piece

45 short radius elbow
FOB Price: US $0.11-999 / Piece

Pipe Fittings 180 degree long radius elbow
FOB Price: US $0.2-50 / Piece

180 short radius elbow
FOB Price: US $0.2-500 / Piece

1d elbow
FOB Price: US $1.2-2500 / Piece

1.5D Elbow
FOB Price: US $0.1-650 / Piece

90 degree 3d elbow
FOB Price: US $0.11-1 / Piece

5d radius elbows
FOB Price: US $1-1000 / Piece

stainless steel Elbow 45,90,180 LR/SR
FOB Price: US $500-1000 / Ton

steel butt welding pipe elbow
FOB Price: US $8-8000 / Piece

180 Buttweld Return Bend
FOB Price: US $500-600 / Piece

butt-welding straight tees and crosses
FOB Price: US $1-100 / Piece

Reducing Outlet Tees/Unequal Tees
FOB Price: US $1-99 / Piece

Equal Tee
FOB Price: US $0.5-500 / Piece

Reducing Tee
FOB Price: US $0.25-6.25 / Piece

Stainless steel equal cross
FOB Price: US $1000-2000 / Ton

Reducing Cross
FOB Price: US $1-5000 / Piece

Reducer stainless steel pipe fittings ANSI B16.9
FOB Price: US $1-1000 / Piece

asme b16.9 concentric reducer
FOB Price: US $10-1000 / Piece

asme b16.9 eccentric reducer sch40
FOB Price: US $1-10000 / Ton

Stub End stainless steel pipe fittings ANSI ASME B16.9
FOB Price: US $1-1000 / Piece

Lap Joint Stub End(wp304,wp304l,wp316,wp316l,wp316ti,wp317l,wp321,wp347)
FOB Price: US $1-1000 / Piece

seamless stainless steel pipe long Stub End
FOB Price: US $0.1-9.9 / Piece

Stainless Steel Short Stubend
FOB Price: US $5-100 / Kilogram

ASME B16.9 Pipe Cap
FOB Price: US $1-1000 / Ton

Carbon steel cap/Forged Pipe fittings/butt welded end cap
FOB Price: US $0.1-10 / Piece

collar pipe fittings
FOB Price: US $0.8-4 / Piece

Swedge Nipple
FOB Price: US $1-30 / Piece

Pipe Nipples
FOB Price: US $0.1-100 / Piece

Barrel Nipple
FOB Price: US $1-999999 / Piece

Reducing Nipple
FOB Price: US $1-1200 / Piece

3D 5D 7D 9D Carbon Steel Pipe Fitting Butt Weld Bend
FOB Price: US $1.01-668.8 / Piece

carbon Steel Long Radius Bend in pipe fittings
FOB Price: US $1-1000 / Piece

Piggable Bend
FOB Price: US $0.5-10000 / Piece

pipe fittings laterals
FOB Price: US $0.5-89 / Piece

Contact MD Expots LLP to buy ANSI/ASME B16.9 Butt weld Reducing Cross

KIndly contact us or fill the enquiry form to send your enquiry / request for catalog or request for product sample.

We’ve been manufacturing ANSI/ASME B16.9 Butt weld Reducing Cross since 2002. Our operations are ISO 9001:2008 certified, and we can deliver a 20-foot container order in 3-4 weeks. Browse through our Product Showroom, and then send us your inquiries.

Competitive Advantages

  • OEM Capability
  • Large Product Line
  • Reliability
  • Reputation
  • Buyer’s Specifications Accepted
  • Prompt delivery

Main Export Market

  • Eastern Europe
  • North America
  • Mid East/Africa
  • Central/South America
  • Asia
  • Western Europe
  • Australasia
  • UAE

Sales Locations

U.A.E, Oman, Saudi Arabia, Qatar, Bahrain, Egypt, Turkey, Singapore, Thailand, Malaysia, Indonesia, Poland, Italy, Portugal, Spain, Brazil, Chile, Venezuela, Costa Rica, USA, Canada, Angola, Sri Lanka, Russia

Global market we export to:
In order to provide quality ANSI/ASME B16.9 Butt weld Reducing Cross to our clients of the nation we have taken the initiative to import so as to supply them materials of world’s best mills and corporations. This has helped us to strive for establishing ourselves firmly in all our market segments.

Related Products


Our main markets for buying are:




Our main markets for selling are:
