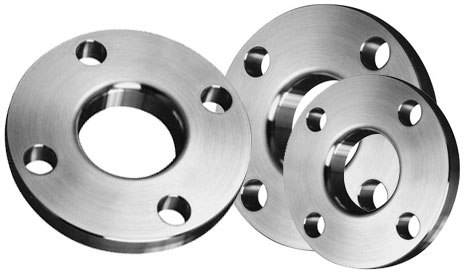

ASME B16.5 Lapped Joint Flanges
Lap joint pipe flanges slide directly over the pipe and are most commonly used with stub end fittings. A pipe is usually welded to the Stub End and the Lap Joint pipe flange is free to rotate around the stub end. The benefit of this is that there will not be any issues with bolt hole alignment. Lap Joint pipe flanges are often used for applications that require frequent dismantling.
Slip on Pipe flanges with a hub have published specifications that range from 1/2" thru 24". Sizes above 24" are produced as lap joints to slip on dimensions. MD Exports LLP provides Lap Joint pipe flanges in all material grades, specifications and sizes.
We manufactures lap joint pipe flanges in all steel material grades, including carbon lap joint pipe flanges, stainless steel lap joint pipe flanges and alloy lap joint pipe flanges. MD Exports LLP also has many different lap joint pipe flanges in stock and ready to ship. MD Exports LLP can also manufacture custom pipe flanges according to customer specifications.
Dimensions
Diameter : 1/2" à 24"
Pressure class : 150# – 300# – 600# – 1500#
Standards
- ASTM A182 – ASME SA182 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
- ASME B16.5- ‘Pipe Flanges and Flanged Fittings’
- MSS SP-6 – ‘Standard Finishes for Contact Faces of Pipe Flanges and Connecting End Flanges of Valves and Fittings’
150Lbs - 300Lbs - 600Lbs
The tables below show the most common sizes but are not exhaustive.
150 Lbs

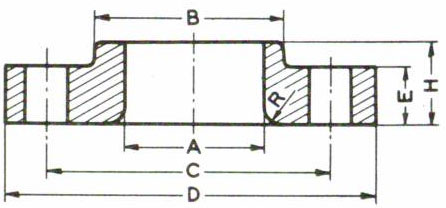

| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia. (D) |
Thick. (E) |
Dia. (B) |
Dia. (A) |
Height (H) |
Nbr | Holes | Dia. (C) |
| 1/2" | 90 | 11.2 | 30 | 22.9 | 16 | 4 | 15.87 | 60.3 |
| 3/4" | 100 | 12.7 | 38 | 28.2 | 16 | 4 | 15.87 | 69.9 |
| 1" | 110 | 14.3 | 49 | 34.9 | 17 | 4 | 15.87 | 79.4 |
| 1 1/4" | 115 | 15.9 | 59 | 43.7 | 21 | 4 | 15.87 | 88.9 |
| 1 1/2" | 125 | 17.5 | 65 | 50.0 | 22 | 4 | 15.87 | 98.4 |
| 2" | 150 | 20.7 | 78 | 62.5 | 25 | 4 | 19.05 | 120.7 |
| 2 1/2" | 180 | 22.3 | 90 | 75.4 | 29 | 4 | 19.05 | 139.7 |
| 3" | 190 | 23.9 | 108 | 91.4 | 30 | 4 | 19.05 | 152.4 |
| 3 1/2" | 215 | 23.9 | 122 | 104.1 | 32 | 8 | 19.05 | 177.8 |
| 4" | 230 | 23.9 | 135 | 116.8 | 33 | 8 | 19.05 | 190.5 |
| 5" | 255 | 23.9 | 164 | 144.4 | 36 | 8 | 22.22 | 215.9 |
| 6" | 280 | 25.4 | 192 | 171.4 | 40 | 8 | 22.22 | 241.3 |
| 8" | 345 | 28.6 | 246 | 222.2 | 44 | 8 | 22.22 | 298.5 |
| 10" | 405 | 30.2 | 305 | 277.4 | 49 | 12 | 25.40 | 362.0 |
| 12" | 485 | 31.8 | 365 | 328.2 | 56 | 12 | 25.40 | 431.8 |
| 14" | 535 | 35.0 | 400 | 360.2 | 79 | 12 | 28.57 | 476.3 |
| 16" | 595 | 36.6 | 457 | 411.2 | 87 | 16 | 28.57 | 539.8 |
| 18" | 635 | 39.7 | 505 | 462.3 | 97 | 16 | 31.75 | 577.9 |
| 20" | 700 | 42.9 | 559 | 514.4 | 103 | 20 | 31.75 | 635.0 |
| 24" | 815 | 47.7 | 663 | 616.0 | 111 | 20 | 34.92 | 749.3 |
The dimensions are in millimeters
Source : ASME B16.5 – 2007
300 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia. (D) |
Thick. (E) |
Dia. (B) |
Dia. (A) |
Height (H) |
Nbr | Holes | Dia. (C) |
| 1/2" | 95 | 14.3 | 38 | 22.9 | 22 | 4 | 15.87 | 66.7 |
| 3/4" | 115 | 15.9 | 48 | 28.2 | 25 | 4 | 19.05 | 82.6 |
| 1" | 125 | 17.5 | 54 | 34.9 | 27 | 4 | 19.05 | 88.9 |
| 1 1/4" | 135 | 19.1 | 64 | 43.7 | 27 | 4 | 19.05 | 98.4 |
| 1 1/2" | 155 | 20.7 | 70 | 50.0 | 30 | 4 | 22.22 | 114.3 |
| 2" | 165 | 22.3 | 84 | 62.5 | 33 | 8 | 19.05 | 127.0 |
| 2 1/2" | 190 | 25.4 | 100 | 75.4 | 38 | 8 | 22.22 | 149.2 |
| 3" | 210 | 28.6 | 117 | 91.4 | 43 | 8 | 22.22 | 168.3 |
| 3 1/2" | 230 | 30.2 | 133 | 104.1 | 44 | 8 | 22.22 | 184.2 |
| 4" | 255 | 31.8 | 146 | 116.8 | 48 | 8 | 22.22 | 200.0 |
| 5" | 280 | 35.0 | 178 | 144.4 | 51 | 8 | 22.22 | 235.0 |
| 6" | 320 | 36.6 | 206 | 171.4 | 52 | 12 | 22.22 | 269.9 |
| 8" | 380 | 41.3 | 260 | 222.2 | 62 | 12 | 25.40 | 330.2 |
| 10" | 445 | 47.7 | 321 | 277.4 | 95 | 16 | 28.57 | 387.4 |
| 12" | 520 | 50.8 | 375 | 328.2 | 102 | 16 | 31.75 | 450.8 |
| 14" | 585 | 54.0 | 425 | 360.2 | 111 | 20 | 31.75 | 514.4 |
| 16" | 650 | 57.2 | 483 | 411.2 | 121 | 20 | 34.29 | 571.5 |
| 18" | 710 | 60.4 | 533 | 462.3 | 130 | 24 | 34.29 | 628.6 |
| 20" | 775 | 63.5 | 587 | 514.4 | 140 | 24 | 34.29 | 685.8 |
| 24" | 915 | 69.9 | 702 | 616.0 | 152 | 24 | 41.27 | 812.8 |
The dimensions are in millimeters
Source : ASME B16.5 – 2007
600 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia. (D) |
Thick. (E) |
Dia. (B) |
Dia. (A) |
Height (H) |
Nbr | Holes | Dia. (C) |
| 1/2" | 95 | 14.3 | 38 | 23.6 | 22 | 4 | 15.87 | 66.7 |
| 3/4" | 115 | 15.9 | 48 | 29.0 | 25 | 4 | 19.05 | 82.6 |
| 1" | 125 | 17.5 | 54 | 35.8 | 27 | 4 | 19.05 | 88.9 |
| 1 1/4" | 135 | 20.7 | 64 | 44.4 | 29 | 4 | 19.05 | 98.4 |
| 1 1/2" | 155 | 22.3 | 70 | 50.6 | 32 | 4 | 22.22 | 114.3 |
| 2" | 165 | 25.4 | 84 | 63.5 | 37 | 8 | 19.05 | 127.0 |
| 2 1/2" | 190 | 28.6 | 100 | 76.2 | 41 | 8 | 22.22 | 149.2 |
| 3" | 210 | 31.8 | 117 | 92.2 | 46 | 8 | 22.22 | 168.3 |
| 3 1/2" | 230 | 35.0 | 133 | 104.9 | 49 | 8 | 25.40 | 184.2 |
| 4" | 275 | 38.1 | 152 | 117.6 | 54 | 8 | 25.40 | 215.9 |
| 5" | 330 | 44.5 | 189 | 144.4 | 60 | 8 | 28.57 | 266.7 |
| 6" | 355 | 47.7 | 222 | 171.4 | 67 | 12 | 28.57 | 292.1 |
| 8" | 420 | 55.6 | 273 | 222.2 | 76 | 12 | 31.75 | 349.2 |
| 10" | 510 | 63.5 | 343 | 276.2 | 111 | 16 | 34.92 | 431.8 |
| 12" | 560 | 66.7 | 400 | 328.6 | 117 | 20 | 34.92 | 489.0 |
| 14" | 605 | 69.9 | 432 | 360.4 | 127 | 20 | 38.10 | 527.0 |
| 16" | 685 | 76.2 | 495 | 411.2 | 140 | 20 | 41.27 | 603.2 |
| 18" | 745 | 82.6 | 546 | 462.0 | 152 | 20 | 44.45 | 6654.0 |
| 20" | 815 | 88.9 | 610 | 512.8 | 165 | 24 | 44.45 | 723.9 |
| 24" | 940 | 101.6 | 718 | 614.4 | 184 | 24 | 50.80 | 838.2 |
The dimensions are in millimeters
Source : ASME B16.5 – 2007
