MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of Orifice Flanges, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in Orifice Flanges & other pipe fittings. our Orifice Flanges & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these Orifice Flanges are corrosion resistance, sturdy and durable. we also supply Orifice Flanges & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and Orifice Flanges.
Quality assurance is carried throughout the process from the raw material purchasing to processing, packing, storage and transportation. Every process strictly conforms to the ISO 9001:2008. "Quality First" is our promise forever to any of our customers. Our products are 100% inspected before being packed and dispatched & all our materials are tested to International standards. We have 3 levels to check quality of our products. We also accept any Third Party of Inspection appointed by our customers, such as Lloyd’s Register, TUV, DNV, BV, SGS, IEI, SAI and etc.
Orifice Flanges
Orifice Flanges In Carbon, Alloy and Stainless
300 LB through 2500 LB
Raised Face or Ring Joint

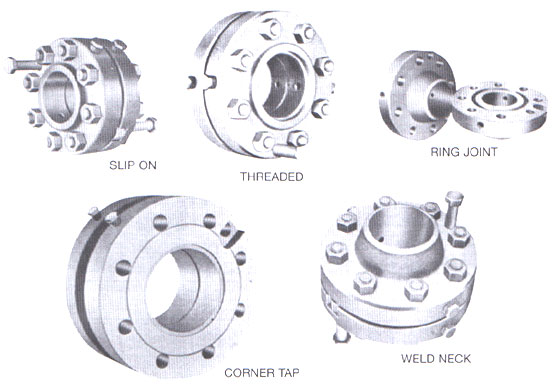

Orifice Flange Unions are designed and manufactured to AGA, ASME, and ISA recommendations. We offer the following types:
- Slip on threaded ring joint corner tap weld neck orifice flanges.
- Raised Face weld neck orifice flanges.
- Raised Face slip-on orifice flange manufacturers.
- Ring-Type joint weld neck orifice flanges.
- Corner tap orifice flanges
Materials used to produce Orifice flanges:
- Aluminum
- Brass
- Bronze
- Cast iron
- Stainless Steel
- Carbon Steel
- Alloy
- Nickel
- Copper etc
Dimensions

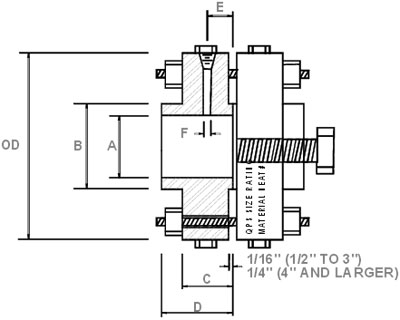

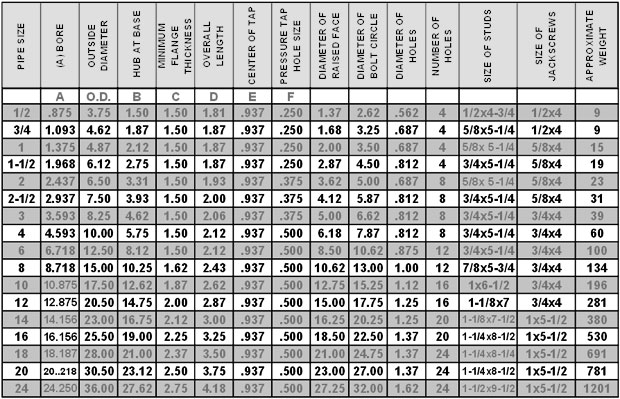

300# RFS0 ORIFICE FLANGE UNION
MATERIALS: A105 (C.S.) AND A182 (S.S.)
Other materials and schedules available
HARDWARE:
- Stud Bolts:A193 Gr. B7 Steel
- Hex Nuts:A194 Gr. 2H Steel
- Jackscrew:C1018 Hardened Square Head Screws
- Pipe Plugs:Hex Head, Forged Steel
- Ring Gaskets:C4430 Non-Asbestos
Manufactured to meet
A.G.A Report #3-2
A.P.I 14.3
ASME SPECIFICATIONS
Orifice Plates sold seperate

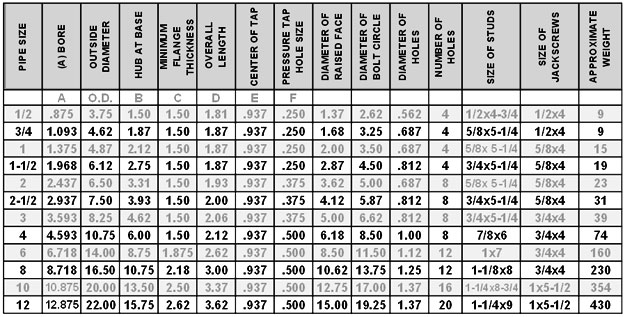

600# RFS0 ORIFICE FLANGE UNION
MATERIALS:
Domestic A105 (C.S.) AND A182 (S.S.)
Other materials and schedules available
HARDWARE:
Stud Bolts:A193 Gr. B7 Steel
Hex Nuts:A194 Gr. 2H Steel
Jackscrew:C1018 Hardened Square Head Screws
Pipe Plugs:Hex Head, Forged Steel
Ring Gaskets: C4430 Non-Asbestos
Manufactured to meet
A.G.A Report #3
A.P.I 14.3
ASME SPECIFICATIONS
Orifice Plates sold seperate
Key Features:
- Come with either raised faces or ring type joint (RTJ) facings.
- Available with raised face or RTJ face
- Used for flow/rate metering of piping systems
- Steel Tubes can supply the plate, pressure connection holes, and jack screws with the orifice flange unit
- The orifice flanges have modifications of radial tapped holes in the flange ring for meter connections. Need A Reliable Fitting?
- There are the orifice plate carriers in these flanges for the reason of fitting meter connections.

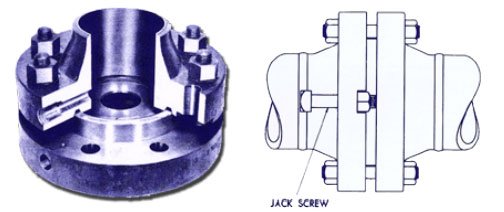

- The additional bolts available serve as a jack to allow the separation of the two flanges to change the orifice plate or for other relevant services like inspection.
Uses of orifice flanges:
- Orifice flange is used to flow/rate metering of piping systems.
- They are used for all intensive purposes, similar to weld neck and slip-on flanges with extra machining.

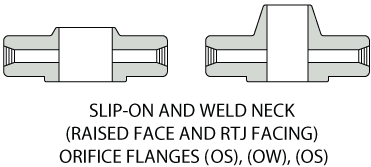

300# Slip_On Orifice Flange
300# Weld Neck Orifice Flange
600# Weld Neck Orifice (raised face and RTJ ring type joint) Flange
900# Weld Neck Orifice (raised face and RTJ ring type joint) Flange
1500# Weld Neck Orifice (raised face and RTJ ring type joint) Flange
2500# Weld Neck Orifice (raised face and RTJ ring type joint) Flange

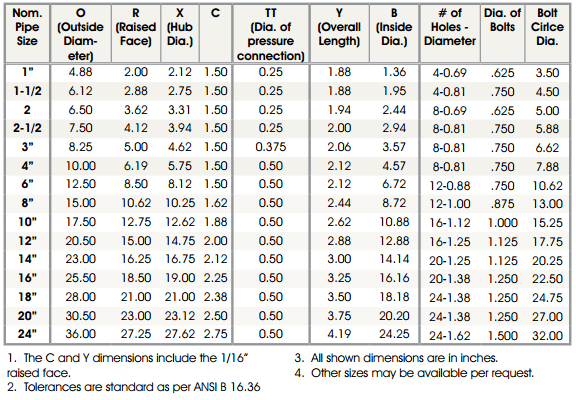

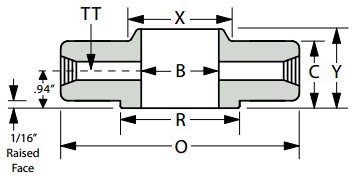

Orifice Flange – SLIP – ON (OS)

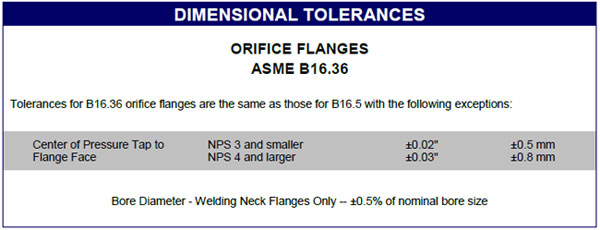

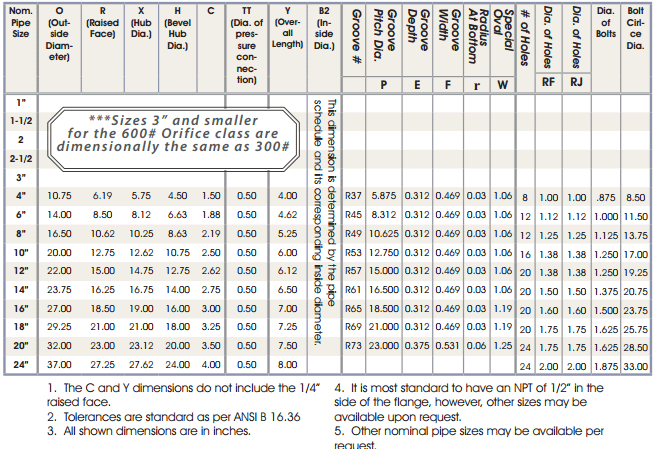

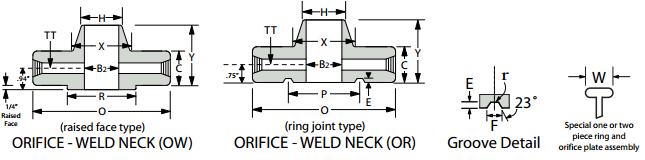

CLASS 600# ANSI B16.36 • Orifice Flanges
Weld Neck Dimensional Data

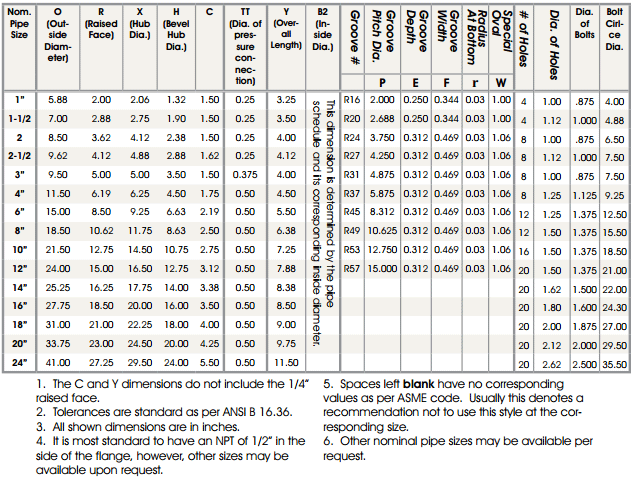

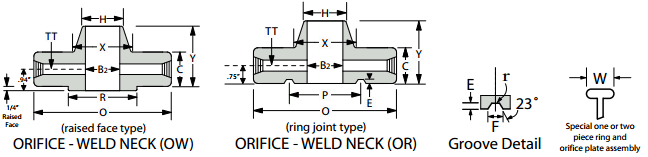

CLASS 900# ANSI B16.36 • Orifice Flanges
Weld Neck Dimensional Data

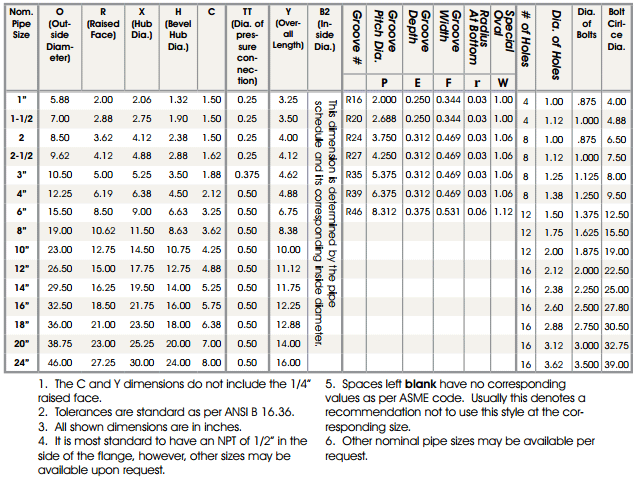

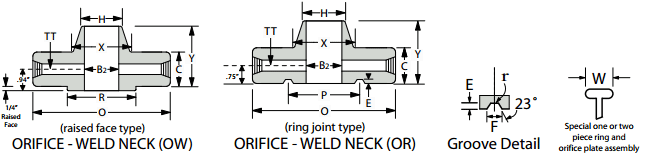

CLASS 1500# ANSI B16.36 • Orifice Flanges
Weld Neck Dimensional Data

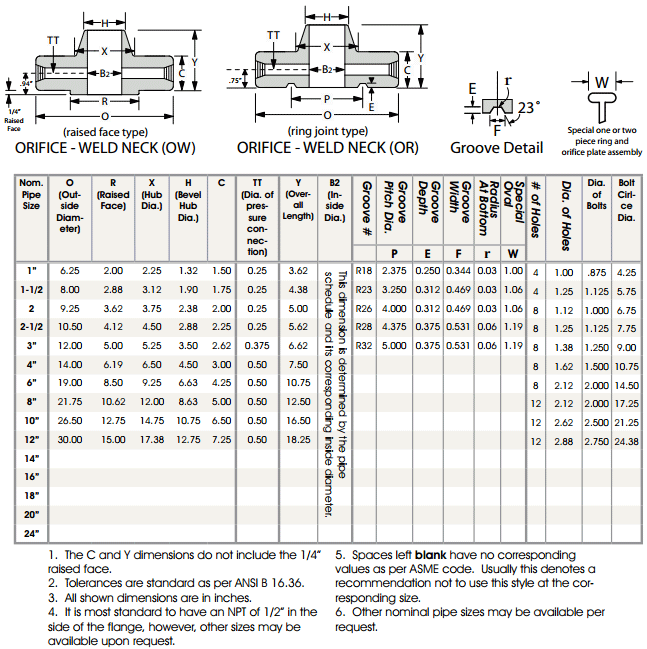

CLASS 2500# ANSI B16.36 • Orifice Flanges
Weld Neck Dimensional Data
Orifice Flanges Godown
we are the manufacturer of Orifice Flanges, we have our own A 3 level 10,000 feet and well equipped warehouse located at Kalamboli, Navi Mumbai, India. We thanks to our skilled staff, we can produce a large number of Orifice Flanges that comply with the different current standards. Choosing and selecting our raw materials is one of the keys to our production.
Orifice Flanges Marking & Packaging
Orifice Flanges Marking
Orifice Flanges Packaging
While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark Orifice Flanges as needed with the most suitable & visible marking technique.
Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the Orifice Flanges according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.
Shipping Policy
Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.
Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If product is out of stock, orders may take up to 2-4 weeks to ship. MD Expots LLP will notify buyer if this situation occurs.
Why choose us for Orifice Flanges?
1. On-Time Delivery Every Time
2. Competitive Prices
3. High Quality Product
4. Quick Response by Email & by Phone
5. An ISO 9001:2008 Certified Company
Third Party Inspection
We offer to our clients the third party inspection of Orifice Flanges from reputed agencies such as LLOYDS, EIL, H&G, TCE, PDIL, MECONS, M.N. DASTUR & Co., Bax council, DNV, Bureau Veritas, DPG, SGS, IRS, and many others.
| THIRD PARTY INSPECTION AGENCIES SERVICES UNDER OUR SCOPE | |
| Tecnimont ICB Limited | ICB |
| DET Norske Veritas | DNV |
| Fact Engineering And Design Organisation | FEDO |
| Projects & Developments India Limited | PDIL |
| Baxcounsel Inspection Bureau Pvt. Ltd. | Baxcounsel |
| Bureau Veritas Industrial Services (India) Pvt. Ltd. | BVIS |
| Industrial Consultancy And Inspection Services | ICIS |
| Metallurgical & Engineering Consultants (India) Ltd. | MECON |
| Nuclear Power Corporation Of India Ltd. | NPCL |
| Engineers India Limited | EIL |
| Bharat Heavy Electricals Limited | BHEL |
| UHDE India Limited | UHDE |
| Pipecon Consultants (India) Pvt. Ltd. | PIPECON |
| Indian Boiler Regulations | IBR |
Best Offer ever on Orifice Flanges
We have our own warehouse of 10,000 feet, so we can offer best price in the market. Optimized financial concepts can be offered on request as well.
Orifice Flanges Application
MD Expots LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality Orifice Flanges to meet the customer ultimate requirements in the fields of:
- Chemical
- Petrochemical
- Refineries
- Fertilizers
- Power Plant
- Nuclear Power
- Oil & Gas
- Paper
- Breweries
- Cement
- Sugar
- Oil Mills
- Mining
- Construction
- Shipbuilding
- Steel Plant
- Offshore
- Defence
- Ports
- Railway
- Engineering Co. &
- Government Org. etc.
Orifice Flanges Price
Check below aproximate price for our customers who are intrested to buy Orifice Flanges
ANSI B16.36 Orifice flange
FOB Price: US $0.1-1000 / Piece
3000LB ASTM A105 SW/NPT forged orifice flanges
FOB Price: US $1-99 / Piece
We’ve been manufacturing Steel Flange since 2002. Our operations are ISO 9001:2008 certified, and we can deliver a 20-foot container order in 3-4 weeks. Browse through our Product Showroom, and then send us your inquiries. Here, we always reply within 24 hours.
