Highly acclaimed Manufacturer & Exporter presents best offer ever on Spades and Ring Spacers

We have specialization to manufacture customized Spades and Ring Spacers per customers’ specifications, we welcome small quantity order.

Spades and Ring Spacers Manufacturer & Exporter

Spades and Ring Spacers (part of flange connection)

Contents

1 Spades and Ring Spacers Specification
2 Spades and Ring Spacers Dimensions
3 Spades and Ring Spacers Godown
4 Spades and Ring Spacers Marking & Packaging
5 Spades and Ring Spacers Shipping Policy
6 Why choose us for Spades and Ring Spacers
7 Best Offer ever on Spades and Ring Spacers
8 Spades and Ring Spacers Price (at Factory Price)
9 Spades and Ring Spacers Uses & Application

We at MD Expots LLP believes in long term relationship with our clients worldwide, Required Quality in reasonable price of Spades and Ring Spacers are always our main priority. We are known as specialist in Spades and Ring Spacers, 70% of our customers are associated with us for their regular requirements of Spades and Ring Spacers, Chinese suppliers also procures Spades and Ring Spacers from us bcz, We have the specialization & 35 years of experience to manufacture Spades and Ring Spacers.

MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of Spades and Ring Spacers, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in Spades and Ring Spacers & other pipe fittings. our Spades and Ring Spacers & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these Spades and Ring Spacers are corrosion resistance, sturdy and durable. we also supply Spades and Ring Spacers & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and Spades and Ring Spacers. When you place an order with MD Expots LLP, you will receive the products that will stand up in service from people that will stand behind their product.

We are Experts in exporting Spades and Ring Spacers & Other Stainless Steel Flanges to over 45 countries including UAE, UK, Dubai, Iran, Iraq, Qatar, Bahrain, Oman, Yemen, Lebanon, Jordan, Saudi Arabia, Malaysia, Indonesia, Singapore, Australia, New Zealand, USA, Canada, Mexico, Brazil, Netherlands, Germany, Italy, Spain, Serbia, Kuwait, Peru, Nigeria, Poland, South Africa, Denmark, Turkey, Egypt, Venezuela, Kuwait, Madagascar, Angloa & Srilanka & are major pipe Fittings & Flanges Suppliers in Saudi Arabia etc. Our ready stock of Spades and Ring Spacers is also available in top countries such as Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. who can help you to buy Spades and Ring Spacers, Pipe fittings and joints and can provide you all the information as per your requirements.

Quality assurance is carried throughout the process from the raw material purchasing to processing, packing, storage and transportation. Every process strictly conforms to the ISO 9001:2008. "Quality First" is our promise forever to any of our customers. Our Spades and Ring Spacers are 100% inspected before being packed and dispatched & all our materials are tested to International standards. We have 3 levels to check quality of Spades and Ring Spacers. We also accept any Third Party of Inspection appointed by our customers, such as Lloyd’s Register, TUV, DNV, BV, SGS, IEI, SAI and etc.

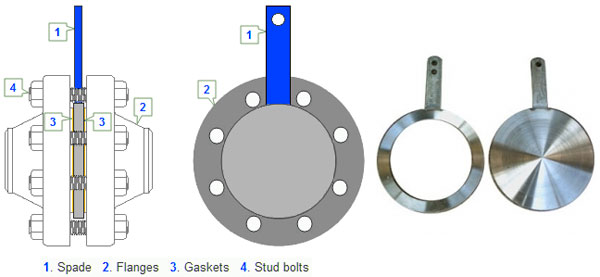

Spades and Ring Spacers

Spades (single blinds) / ring spacer
Spades and Ring Spacers are basically the same as Spectacle Blinds, except that both are not attached to each other.

Spades and Spacers be applied in systems where maintenance is often not necessary, or in applications with large pipe sizes. Spectacle Blinds, Spades and Ring Spacers should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges and piping involved.

enquiry-button

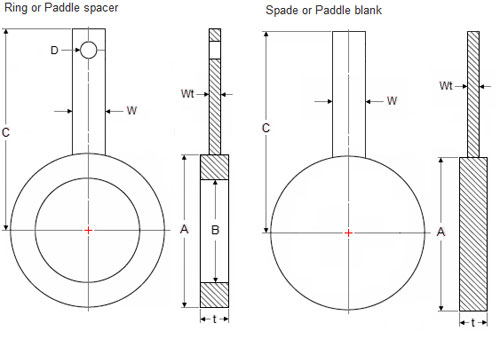

Dimensions

Spades and Ring Spacers (part of flange connection)

Class 150

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 45 16 126 3 32
3/4 54 21 131 3 32
1 64 27 136 3 32
1¼ 73 42 145 6.4 32
1½ 83 48 145 6.4 32
2 102 61 155 6.4 32
2½ 107 73 170 6.4 32
3 133 89 170 6.4 32
3½ 159 102 202 9.7 38
4 172 114 202 9.7 38
5 194 141 225 9.7 38
6 219 168 225 12.7 38
8 276 219 267 12.7 38
10 337 273 322 15.7 44
12 406 324 357 19.1 44
14 448 356 378 19.1 44
16 511 406 410 22.4 44
18 546 457 427 25.4 51
20 603 508 455 28.4 51
24 714 610 512 31.8 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Spades and Ring Spacers (part of flange connection)

Class 300

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1 70 27 139 6.4 32
1¼ 79 42 150 6.4 32
1½ 92 48 150 6.4 32
2 108 61 158 9.7 32
2½ 127 73 177 9.7 32
3 146 89 177 9.7 32
3½ 162 102 205 12.7 38
4 178 114 205 12.7 38
5 213 141 240 15.7 38
6 248 168 240 15.7 38
8 305 219 281 22.4 38
10 359 273 333 25.4 44
12 419 324 363 28.4 44
14 483 356 395 31.8 44
16 536 406 422 38.1 44
18 594 457 450 41.1 51
20 651 508 480 44.5 51
24 772 610 540 50.8 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Spades and Ring Spacers (part of flange connection)

Class 600

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1 70 27 139 6.4 32
1¼ 79 37 150 9.7 32
1½ 92 43 150 9.7 32
2 108 55 158 9.7 32
2½ 127 67 177 12.7 32
3 146 83 177 12.7 32
3½ 159 96 211 15.7 38
4 191 108 211 15.7 38
5 238 135 248 19.1 38
6 264 162 248 22.4 38
8 318 212 288 28.4 38
10 397 265 352 35.1 44
12 454 315 381 41.1 44
14 489 346 398 44.5 44
16 562 397 435 50.8 44
18 610 448 459 53.8 51
20 679 497 493 63.5 51
24 787 597 547 73.2 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Spades and Ring Spacers (part of flange connection)

Class 900

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 60 16 134 6.4 32
3/4 67 21 137 6.4 32
1 76 27 142 6.4 32
1¼ 86 37 151 9.7 32
1½ 95 43 151 9.7 32
2 140 55 174 12.7 32
2½ 162 67 186 12.7 32
3 165 83 186 15.7 32
4 203 108 217 19.1 38
5 244 135 259 22.4 38
6 286 162 259 25.4 38
8 356 212 307 35.1 38
10 432 265 370 41.1 44
12 495 315 401 47.8 44
14 518 346 412 53.8 44
16 572 397 440 60.5 44
18 635 448 471 66.5 51
20 696 497 501 73.2 51
24 835 597 571 88.9 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Spades and Ring Spacers (part of flange connection)

Class 1500

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 61 16 135 6.4 32
3/4 67 21 137 9.7 32
1 76 27 142 9.7 32
1¼ 86 35 151 9.7 32
1½ 95 41 151 12.7 32
2 140 53 174 12.7 32
2½ 162 63 190 15.7 32
3 172 78 190 19.1 32
4 206 102 219 22.4 38
5 251 128 256 28.4 38
6 279 154 256 35.1 38
8 349 203 303 41.1 38
10 432 255 370 50.8 44
12 518 303 412 60.5 44
14 575 333 442 66.5 44
16 638 381 472 76.2 44
18 702 429 504 85.9 51
20 752 478 530 95.3 51
24 899 575 603 111.3 51
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Spades and Ring Spacers (part of flange connection)

Class 2500

 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W
1/2 67 16 137 9.7 32
3/4 73 21 140 9.7 32
1 83 27 145 9.7 32
1¼ 102 35 161 12.7 32
1½ 114 41 161 15.7 32
2 143 53 175 15.7 32
2½ 165 63 201 19.1 32
3 194 78 201 22.4 32
4 232 102 232 28.4 38
5 276 128 273 35.1 38
6 314 154 273 41.1 38
8 384 198 321 53.8 38
10 473 248 390 66.5 44
12 546 289 427 79.2 44
 NPS  Outside Ø
A		 Inside Ø
B		 Center to End
C		 Thickness
t		 Handle Width
W

Notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Spade Handles shall be solid with no openings.
  • Ring Spacer Handles shall have a single through indicator hole located near the end of the handle. The hole diameter shall not be less than 12 mm.
  • Wt = Thickness of the handle should be 6 mm minimum, or equal to Thickness (t) if less than 6 mm.
  • Spades and Ring Spacers should be made from a plate or forging specification, approved for use by ASME B31.3, of essentially the same chemical composition as the mating flanges and piping involved.
  • Spades & Ring Spacers according to ASME B16.48 may be used for installation between ASME B16.5 flanges
  • Depending on a customer specification, some dimensions can be different from what on this page is defined.

Spades and Ring Spacers Godown

Flanges in Godownwe are the manufacturer of Spades and Ring Spacers, we have our own A 3 level 10,000 feet and well equipped warehouse located at Kalamboli, Navi Mumbai, India. We thanks to our skilled staff, we can produce a large number of Spades and Ring Spacers that comply with the different current standards. Choosing and selecting our raw materials is one of the keys to our production.

Spades and Ring Spacers Marking & Packaging

Spades and Ring Spacers Grades Marking
Spades and Ring Spacers Marking

Spades and Ring Spacers Packaging
Spades and Ring Spacers Packaging

While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark Spades and Ring Spacers as needed with the most suitable & visible marking technique.

Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the Spades and Ring Spacers according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If Spades and Ring Spacers is out of stock, orders may take up to 2-4 weeks to ship. MD Expots LLP will notify buyer if this situation occurs.

Why choose us for Spades and Ring Spacers?

1. On-Time Delivery Every Time

2. Competitive Prices

3. High Quality Product

4. Quick Response by Email & by Phone

5. An ISO 9001:2008 Certified Company

Third Party Inspection

Spades and Ring Spacers ManufacturerWe offer to our clients the third party inspection of Spades and Ring Spacers from reputed agencies such as LLOYDS, EIL, H&G, TCE, PDIL, MECONS, M.N. DASTUR & Co., Bax council, DNV, Bureau Veritas, DPG, SGS, IRS, and many others.

THIRD PARTY INSPECTION AGENCIES SERVICES UNDER OUR SCOPE
Tecnimont ICB Limited ICB
DET Norske Veritas DNV
Fact Engineering And Design Organisation FEDO
Projects & Developments India Limited PDIL
Baxcounsel Inspection Bureau Pvt. Ltd. Baxcounsel
Bureau Veritas Industrial Services (India) Pvt. Ltd. BVIS
Industrial Consultancy And Inspection Services ICIS
Metallurgical & Engineering Consultants (India) Ltd. MECON
Nuclear Power Corporation Of India Ltd. NPCL
Engineers India Limited EIL
Bharat Heavy Electricals Limited BHEL
UHDE India Limited UHDE
Pipecon Consultants (India) Pvt. Ltd. PIPECON
Indian Boiler Regulations IBR

Best Offer ever on Spades and Ring Spacers

We have our own warehouse of 10,000 feet, so we can offer best price in the market. Optimized financial concepts can be offered on request as well.

Spades and Ring Spacers Application

MD Expots LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality Spades and Ring Spacers to meet the customer ultimate requirements in the fields of:

  • Chemical
  • Petrochemical
  • Refineries
  • Fertilizers
  • Power Plant
  • Nuclear Power
  • Oil & Gas
  • Paper
  • Breweries
  • Cement
  • Sugar
  • Oil Mills
  • Mining
  • Construction
  • Shipbuilding
  • Steel Plant
  • Offshore
  • Defence
  • Ports
  • Railway
  • Engineering Co. &
  • Government Org. etc.

Spades and Ring Spacers Price

Check below aproximate price for our customers who are intrested to buy Spades and Ring Spacers

DIN2573/2576/2501/2502/2543/DIN2631/2632/2633/2634/2635/ DIN2565/2566/DIN2527/DIN2641/2642 spacer/spade flange
FOB Price: US $0.56-118.76 / Piece

SPACER/SPADE FLANGE
FOB Price: US $1-5000 / Piece

spade blind flange
FOB Price: US $1-99999 / Piece

ASME A105 spade flanges
FOB Price: US $1-1000 / Unit

Different kinds of blind spade flange
FOB Price: US $0.1-9999 / Piece

We’ve been manufacturing Spades and Ring Spacers since 2002. Our operations are ISO 9001:2008 certified, and we can deliver a 20-foot container order in 3-4 weeks. Browse through our Product Showroom, and then send us your inquiries. Here, we always reply within 24 hours.
