Highly acclaimed Manufacturer & Exporter presents best offer ever on ANSI/ASME B16.9 Butt weld Short Stubend

We have specialization to manufacture customized ANSI/ASME B16.9 Butt weld Short Stubend per customers’ specifications, we welcome small quantity order.

ANSI/ASME B16.9 Butt weld Short Stubend Manufacturer & Exporter

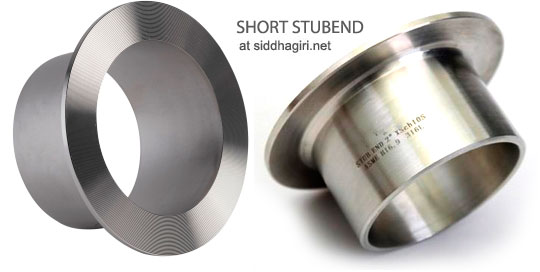

ANSI/ASME B16.9 Butt weld Short Stubend

Contents

1 ANSI/ASME B16.9 Butt weld Short Stubend Specification
2 ANSI/ASME B16.9 Butt weld Short Stubend Dimensions
3 ANSI/ASME B16.9 Butt weld Short Stubend Godown
4 ANSI/ASME B16.9 Butt weld Short Stubend Marking & Packaging
5 ANSI/ASME B16.9 Butt weld Short Stubend Shipping Policy
6 Why choose us for ANSI/ASME B16.9 Butt weld Short Stubend
7 Best Offer ever on ANSI/ASME B16.9 Butt weld Short Stubend
8 ANSI/ASME B16.9 Butt weld Short Stubend Price (at Factory Price)
9 ANSI/ASME B16.9 Butt weld Short Stubend Uses & Application

We at MD Expots LLP believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ANSI/ASME B16.9 Butt weld Short Stubend are always our main priority. We are known as specialist in ANSI/ASME B16.9 Butt weld Short Stubend,70% of our customers are associated with us for their regular requirements of ANSI/ASME B16.9 Butt weld Short Stubend, Chinese suppliers also procures ANSI/ASME B16.9 Butt weld Short Stubend from us bcz. We have the specialization & 35 years of experience to manufacture ANSI/ASME B16.9 Butt weld Short Stubend.

MD Expots LLP is Manufacturer, Stockists & Supplier of premium quality range of ANSI/ASME B16.9 Butt weld Short Stubend, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in ANSI/ASME B16.9 Butt weld Short Stubend & other pipe fittings. our ANSI/ASME B16.9 Butt weld Short Stubend & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ANSI/ASME B16.9 Butt weld Short Stubend are corrosion resistance, sturdy and durable. we also supply ANSI/ASME B16.9 Butt weld Short Stubend & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ANSI/ASME B16.9 Butt weld Short Stubend. When you place an order with MD Expots LLP, you will receive the products that will stand up in service from people that will stand behind their product.

ANSI/ASME B16.9 Butt weld Short Stubend

Standards: ANSI – B 16.9
ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
API 590-605
ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”
ASME B16.25 – ‘Buttwelding Ends’
ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’
MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule: Sch 5 TO Sch XXS.
Sizes: 1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” )
Materials: Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

enquiry-button

Dimensions

Stub Ends Short Type "C"

Stub Ends Short Type "C"

Product Nom. Pipe Size Diameter (G) Length (J) Outside Diameter (O.D.) Schedule 10S Approx. Weight Schedule 10S, Inside Diameter (I.D.) Schedule 10S, Wall Thickness (T) Schedule 5S Approx. Weight Schedule 5S, Inside Diameter (I.D.) Schedule 5S, Wall Thickness (T)
1 1/2" Lap- Joint Stub End / Stub Ends Short Type "C" 1.5 2.875 2 1.9 0.44 1.682 0.109 0.29 1.77 0.065
1 1/4" Lap- Joint Stub End / Stub Ends Short Type "C" 1.25 2.5 2 1.66 0.42 1.442 0.109 0.21 1.53 0.065
1" Lap- Joint Stub End / Stub Ends Short Type "C" 1 2 2 1.315 0.31 1.097 0.109 0.19 1.185 0.065
1/2" Lap- Joint Stub End / Stub Ends Short Type "C" 0.5 1.375 2 0.84 0.14 0.674 0.083 0.13 0.71 0.065
10" Lap- Joint Stub End / Stub Ends Short Type "C" 10 12.75 5 10.75 9.46 1042 0.165 7.48 10.482 0.134
12" Lap- Joint Stub End / Stub Ends Short Type "C" 12 15 6 12.75 16.07 12.39 0.18 15 12.438 0.156
14" Lap- Joint Stub End / Stub Ends Short Type "C" 14 16.25 6 14 23.1 13.624 0.188 19.2 13.688 0.156
16" Lap- Joint Stub End / Stub Ends Short Type "C" 16 18.5 6 16 27.2 15.624 0.188 23.9 15.67 0.165
18" Lap- Joint Stub End / Stub Ends Short Type "C" 18 21 6 18 32.4 17.624 0.188 28.5 17.67 0.165
2 1/2" Lap- Joint Stub End / Stub Ends Short Type "C" 2.5 4.125 2.5 2.875 1 2.635 0.12 0.75 2.709 0.083
2" Lap- Joint Stub End / Stub Ends Short Type "C" 2 3.625 2.5 2.375 0.81 2.157 0.109 0.44 2.245 0.065
20" Lap- Joint Stub End / Stub Ends Short Type "C" 20 23 6 20 47.7 19.564 0.218 36.3 19.624 0.188
24" Lap- Joint Stub End / Stub Ends Short Type "C" 24 27.25 6 24 58.27 23.5 0.25 56 23.564 0.218
3" Lap- Joint Stub End / Stub Ends Short Type "C" 3 5 2.5 3.5 1.25 3.26 0.12 0.94 3.334 0.083
3/4" Lap- Joint Stub End / Stub Ends Short Type "C" 0.75 1.688 2 1.05 0.18 0.884 0.083 0.14 0.92 0.065
4" Lap- Joint Stub End / Stub Ends Short Type "C" 4 6.188 3 4.5 1.88 4.26 0.12 1.38 4.334 0.083
5" Lap- Joint Stub End / Stub Ends Short Type "C" 5 7.313 3 5.563 2.63 5.295 0.134 2.06 5.345 0.109
6" Lap- Joint Stub End / Stub Ends Short Type "C" 6 8.5 3.5 6.625 3.56 6.357 0.134 2.75 6.407 0.109
8" Lap- Joint Stub End / Stub Ends Short Type "C" 8 10.625 4 8.625 6.19 8.329 0.148 3.88 8.407 0.109



STUB ENDS – Ansi and MSS SP-43 dimensions

STUB ENDS – ANSI B 16.9 and MSS SP-43 dimension

inches ND mm Diameter of lap

Radius of fillet

Length F

 D

G R R1 MSS SP43 ANSI B16.9
1/2 15 21,34 34,92 3,17 0,80 50,80 76,20
3/4 20 26,67 42,86 3,17 0,80 50,80 76,20
1 25 33,40 50,80 3,17 0,80 50,80 101,60
1 1/4 32 42,16 63,50 4,76 0,80 50,80 101,60
1 1/2 40 48,26 73,00 6,35 0,80 50,80 101,60
2 50 60,32 92,10 7,93 0,80 63,50 152,40
2 1/2 65 73,02 104,80 7,93 0,80 63,50 152,40
3 80 88,90 127,00 9,52 0,80 63,50 152,40
3 1/2 90 101,60 139,70 9,52 0,80 76,20 152,40
4 100 114,30 157,20 11,11 0,80 76,20 152,40
5 125 141,30 185,70 11,11 1,58 76,20 203,20
6 150 168,27 215,90 12,70 1,58 88,90 203,20
8 200 219,07 269,80 12,70 1,58 101,60 203,20
10 250 273,05 323,80 12,70 1,58 127,00 254,00
12 300 323,85 381,00 12,70 1,58 152,40 254,00
14 350 355,60 412,70 12,70 1,58 152,40 304,80
16 400 406,40 469,90 12,70 1,58 152,40 304,80
18 450 457,20 533,40 12,70 1,58 152,40 304,80
20 500 508,00 584,20 12,70 1,58 152,40 304,80
22 550 558,80 641,30 12,70 1,58 152,40 304,80
24 600 609,60 692,10 12,70 1,58 152,40 304,80
The lap thickness T shall not be less than nominal pipe wall thickness t

STUB ENDS – Ansi 16.9 tolerances

DIMENSIONAL TOLERANCES – STUB ENDS

For all fittings Stub Ends
Nominal Pipe Size (NPS) Outside Ø at Bevel Indide Ø at End Wall Thickness
t / t1
O.D. of Lap G Fillet Radius of Lap – R Overall Length. – F
1/2 a 2 1/2 1 0,8 Not +0 -1 +0 -1 2
3 a 3 1/2 1 1,6 less +0 -1 +0 -1 2
4 +2 -1 1,6 than +0 -1 +0 -2 2
5 a 6 +3 -1 1,6 87,50% +0 -1 +0 -2 2
8 2 1,6 of nominal +0 -1 +0 -2 2
10 +4 -3 3,2 tickness +0 -2 +0 -2 2
12 to 18 +4 -3 3,2   +0 -2 +0 -2 3
20 a 24 +6 -5 4,8   +0 -2 +0 -2 3
26 a 30 +7 -5 4,8
32 a 48 +7 -5 4,8

STUB ENDS – Weights

NPS
inches
STUB ENDS
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1/2 0.06 0.08 0.12 0.13
3/4 0.07 0.09 0.15 0.17
1 0.09 0.15 0.20 0.25
1 1/4 0.13 0.20 0.30 0.35
1 1/2 0.16 0.25 0.38 0.46
2 0.25 0.40 0.55 0.75
2 1/2 0.35 0.50 0.80 1.00
3 0.50 0.60 1.10 1.50
4 0.70 1.00 1.80 2.50
5 1.00 1.25 2.50 3.50
6 1.60 1.95 3.70 5.50
8 2.50 3.10 5.90 10.0
10 4.00 4.90 10.5 14.0
12 6.60 7.10 15.0 20.0
14 6.40 7.80 15.5 20.5
16 7.90 9.00 18.0 24.0
18 9.30 10.5 21.0 28.0
20 12.0 13.5 23.5 31.0
24 16.5 19.0 28.5 38.0
Approximate weights in kg, density 8 kg/dm3



STUB ENDS – End welding bevels

ANSI/ASME B16.9 Butt weld Stub End Manufacturer & Exporter

ANSI/ASME B16.9 Butt weld Short Stubend Godown

MD Expots LLP Flanges Godownwe are the manufacturer of ANSI/ASME B16.9 Butt weld Short Stubend, we have our own A 3 level 10,000 feet and well equipped warehouse located at Kalamboli, Navi Mumbai, India. We thanks to our skilled staff, we can produce a large number of ANSI/ASME B16.9 Butt weld Short Stubend that comply with the different current standards. Choosing and selecting our raw materials is one of the keys to our production.



ANSI/ASME B16.9 Butt weld Short Stubend Marking & Packaging

ANSI/ASME B16.9 Butt weld Short Stubend Grades Marking
ANSI/ASME B16.9 Butt weld Short Stubend Marking

ANSI/ASME B16.9 Butt weld Short Stubend Packaging
ANSI/ASME B16.9 Butt weld Short Stubend Packaging

While marking we choose a specific item number as well different color shade to differentiate steel grades. We mark ANSI/ASME B16.9 Butt weld Short Stubend as needed with the most suitable & visible marking technique.

Our experienced warehouse guys are always ready to pick out your order and get it ready for delivery. we package and pack the ANSI/ASME B16.9 Butt weld Short Stubend according to customers’ specification & as per the appropriate method such as wooden crate, strapped pallet, overseas packing (ISPM15). Do you know Hardened containers (plywood, metal) that are not banded should have an exterior lock or clamp. (Glue, nails and screws are not sufficient.) We know proper packaging of your freight is the best way to ensure that your goods arrive safely at their destination.

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ANSI/ASME B16.9 Butt weld Short Stubend is out of stock, orders may take up to 2-4 weeks to ship. MD Expots LLP will notify buyer if this situation occurs.

Why choose us for ANSI/ASME B16.9 Butt weld Short Stubend?

1. On-Time Delivery Every Time

2. Competitive Prices

3. High Quality Product

4. Quick Response by Email & by Phone

5. An ISO 9001:2008 Certified Company

We are Experts in exporting ANSI/ASME B16.9 Butt weld Short Stubend & Other Stainless Steel Flanges to over 45 countries including UAE, UK, Dubai, Iran, Iraq, Qatar, Bahrain, Oman, Yemen, Lebanon, Jordan, Saudi Arabia, Malaysia, Indonesia, Singapore, Australia, New Zealand, USA, Canada, Mexico, Brazil, Netherlands, Germany, Italy, Spain, Serbia, Kuwait, Peru, Nigeria, Poland, South Africa, Denmark, Turkey, Egypt, Venezuela, Kuwait, Madagascar, Angloa & Srilanka & are major pipe Fittings & Flanges Suppliers in Saudi Arabia etc. Our ready stock of ANSI/ASME B16.9 Butt weld Short Stubend is also available in top countries such as Dubai, United States, United Arab Emirates, Indonesia, Israel, Thailand, Vietnam, Kuwait, United Kingdom, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Saudi Arabia, Brazil, Colombia, Iran, Italy, Denmark etc. who can help you to buy ANSI/ASME B16.9 Butt weld Short Stubend, Pipe fittings and joints and can provide you all the information as per your requirements.

Quality assurance is carried throughout the process from the raw material purchasing to processing, packing, storage and transportation. Every process strictly conforms to the ISO 9001:2008. "Quality First" is our promise forever to any of our customers. Our ANSI/ASME B16.9 Butt weld Short Stubend are 100% inspected before being packed and dispatched & all our materials are tested to International standards. We have 3 levels to check quality of ANSI/ASME B16.9 Butt weld Short Stubend. We also accept any Third Party of Inspection appointed by our customers, such as Lloyd’s Register, TUV, DNV, BV, SGS, IEI, SAI and etc.

Third Party Inspection

ANSI/ASME B16.9 Butt weld Short Stubend ManufacturerWe offer to our clients the third party inspection of ANSI/ASME B16.9 Butt weld Short Stubend from reputed agencies such as LLOYDS, EIL, H&G, TCE, PDIL, MECONS, M.N. DASTUR & Co., Bax council, DNV, Bureau Veritas, DPG, SGS, IRS, and many others.

THIRD PARTY INSPECTION AGENCIES SERVICES UNDER OUR SCOPE
Tecnimont ICB Limited ICB
DET Norske Veritas DNV
Fact Engineering And Design Organisation FEDO
Projects & Developments India Limited PDIL
Baxcounsel Inspection Bureau Pvt. Ltd. Baxcounsel
Bureau Veritas Industrial Services (India) Pvt. Ltd. BVIS
Industrial Consultancy And Inspection Services ICIS
Metallurgical & Engineering Consultants (India) Ltd. MECON
Nuclear Power Corporation Of India Ltd. NPCL
Engineers India Limited EIL
Bharat Heavy Electricals Limited BHEL
UHDE India Limited UHDE
Pipecon Consultants (India) Pvt. Ltd. PIPECON
Indian Boiler Regulations IBR

Best Offer ever on ANSI/ASME B16.9 Butt weld Short Stubend

We have our own warehouse of 10,000 feet, so we can offer best price in the market. Optimized financial concepts can be offered on request as well.
