ASTM A234 WPB Buttweld Fittings

Astm A234 Wpb Buttweld Fittings Manufacturer In India, Astm A234 Wpb Fittings, Seamless Fittings Supplier

Astm A234 Wpb Tee, Astm A234 Wpb Elbow, Astm A 234 Wpb Reducer, Astm A234 Wpb Pipe Cap, Buttweld Fittings

Buttweld Seamless And Welded Astm A234 Wpb Pipe Fittings Manufacturer, Exporter, Supplier In India

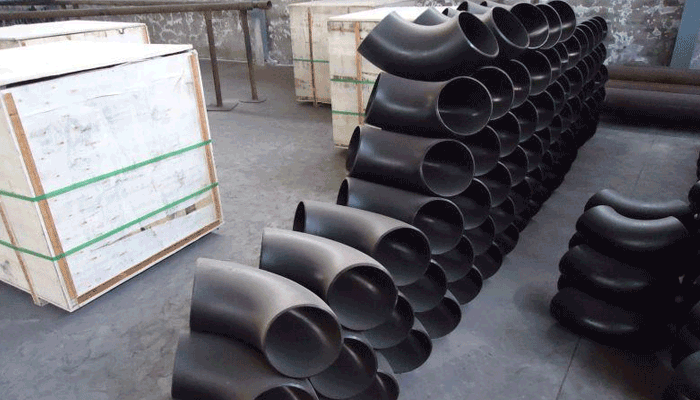

Original Photograph Of  Astm A234 Wpb Pipe Fittings Ready Stock At Our Warehouse, Mumbai

Original Photograph Of  Astm A234 Wpb Pipe Fittings Ready Stock At Our Warehouse, Mumbai

ASTM A234 WPB 36″ Long Radius Elbow | ASTM A234WPB 24″ Equal Tee SCH XXS | ASTM A234 WPB 36″ SCH 160 Pipe Cap | ASTM A234 WPB 32″ Concentric Reducer SCH 80S | ASTM A234 WPB Unequal Tee 24″ x 12″ SCH 160 | ASTM A234 WPB Seamless Buttweld Fittings | ASTM A234 WPB ERW Buttweld Fittings | ASTM A234 WPB, ANSI B16.9 Fittings | Seamless Reducing Tee, ASTM A234 WPB

Galvanised Finish | Blackodised Finish | Shot Blast Finish | Black Paint | Heat Marking | Certification EN 10204 3.1

Seamless and ERW Buttweld ASTM A234 WPB Fittings in Size Range of 1/2″ upto 48″ SCH 10, SCH 40, SCH80, SCH 160, SCH XS, SCH XXS

“ASTM A234 is Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service“

We Specialise in Manufacturing Large Diameter and High Thickness Seamless Buttweld Fittings, as per ASTM 234 WPB Specification

ASTM A234 WPB Buttweld Pipe Fittings Manufacturer in India – Buttweld Tee, Reducer, End Cap, Long/Short Radius Elbows

An ISO 9001:2008 Certified Company, MD Exports LLP is India’s most trusted manufacturer and exporter of ASTM A234 WPB grade buttweld fittings. Our stock includes ASTM A234 WPB pipe fittings in a complete range of sizes and pressure ratings. All raw material purchased by MD Exports LLP to manufacture ASTM A234 WPB fittings is fully traceable to the mill source. All fittings are manufactured in India, with raw materials coming from reputed Mills in India and overseas.

  • Brand: Raw Materials from Japanese Mills, European Mills, US Mills, Korean Mills
  • Model: 1/2 inch upto 48 inch

The ASTM A234 specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction. These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures. The material for fittings shall consist of killed steel, forgings, bars, plates, seamless or fusion-welded tubular products with filler metal added. Forging or shaping operations may be performed by hammering, pressing, piercing, extruding, upsetting, rolling, bending, fusion welding, machining, or by a combination of two or more of these operations. The forming procedure shall be so applied that it will not produce injurious imperfections in the fittings. Fittings, after forming at an elevated temperature, shall be cooled to a temperature below the critical range under suitable conditions to prevent injurious defects caused by too rapid cooling, but in no case more rapidly than the cooling rate in still air. The fittings shall be subjected to tension test, hardness test, and hydrostatic test.

ASTM A234 WPB Pipe Fittings Chemical Composition %

Grade C Mn P S Si Cr Mo Ni Cu V Nb
WPB 0.3 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
WPC 0.35 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02

ASTM A234 WPB Buttweld Pipe Fittings Mechanical Properties %

Tensile Requirements WPB WPC
Tensile Strength, min, ksi[MPa] 60-85 [415-585] 70-95 [485-655]
Yield Strength, min, ksi[MPa] 32 [240] 40 [275]

ASTM A234 WPB Pipe Fittings Production Range

Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Range ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Dimensions ANSI/ASME B16.9, B16.28, MSS-SP-43.

Buttweld ASTM A234 WPB Pipe Fittings

Seamless/ Welded 100% Radiography Tested

Products Size
ASTM A234 WPB Elbows – Long Radius ASTM A234 WPB Stub Ends

Sizes 1/2″ – 48″

ASTM A234 WPB Elbows – Short Radius ASTM A234 WPB Crosses
ASTM A234 WPB Reducing Elbows ASTM A234 WPB Reducing Crosses
ASTM A234 WPB 45° Elbows ASTM A234 WPB 180° LR Return Bends
ASTM A234 WPB Tees ASTM A234 WPB 180° SR Return Bends
ASTM A234 WPB Reducing Tees ASTM A234 WPB Pipe Bends / Piggable Bends
ASTM A234 WPB Reducers ASTM A234 WPB Couplings
ASTM A234 WPB Concentric Reducers ASTM A234 WPB Pipe Nipples
ASTM A234 WPB Eccentric Reducers ASTM A234 WPB Forged/Plate Cut Rings
ASTM A234 WPB 3D Elbow ASTM A234 WPB End Caps
ASTM A234 WPB 5D Elbow Carbon Steel Forged / Plate Circles
