ASTM A420 WPL6 Low Temp. Fittings

Astm A420 Wpl6 Carbon Steel Pipe Fittings Manufacturer In India, Ltcs A420 Wpl6 Buttweld Fittings

Ltcs Astm A420 Wpl6 Elbow, Astm A420 Wpl6 Equal Tee, Astm A420 Wpl6 Reducer Fittings Manufacturer

Astm A420 Wpl6 Buttweld Seamless And Welded Fittings, Low Temperature Steel Fittings Supplier, Exporter

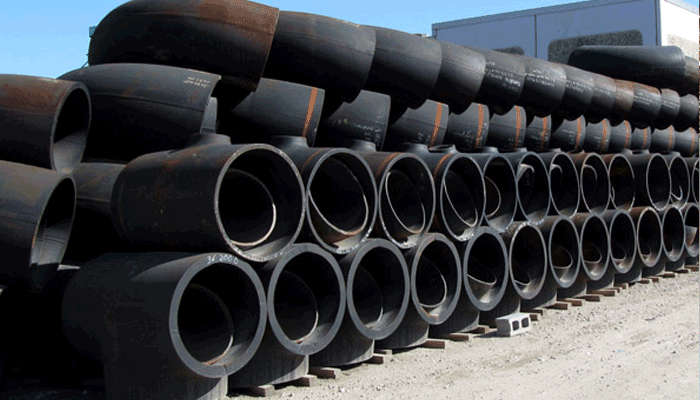

Original Photograph Of ASTM A420 WPL6 Low Temp. Fittings  Ready Stock At Our Warehouse, Mumbai

Original Photograph Of ASTM A420 WPL6 Low Temp. Fittings  Ready Stock At Our Warehouse, Mumbai

ASTM A420 WPL6 24″ Long Radius Elbow | ASTM A420 WPL6 24″ Equal Tee SCH XXS | ASTM A420 WPL6 10″ SCH 160 Short Radius Bends | ASTM A420 WPL6 24″ Concentric Reducer SCH 80S | ASTM A420 WPL6 Unequal Tee 16″ x 12″ SCH 160 | ASTM A420 WPL6 Seamless Buttweld Fittings | ASTM A420 WPL6 100% X-Ray Welded Buttweld Fittings | ASTM A420 WPL6 ANSI B16.9 Fittings | Seamless Reducing Tee, ASTM A420 WP6L | Low Temperature Carbon Steel (LTCS) Fittings

Galvanised Finish | Blackodised Finish | Shot Blast Finish | Black Oil PaintHeat Marking | Certification EN 10204 3.1

Seamless and ERW Buttweld ASTM A420 WPL6 Pipe Fittings in Size Range of 1/2″ upto 48″ SCH 10, SCH 40, SCH80, SCH 160, SCH XS, SCH XXS

ASTM A420 is Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service

We Specialise in Manufacturing Large Diameter and High Thickness ASTM A420 WPL6 Seamless, Welded Buttweld Fittings

ASTM A420 WPL6, Low Temperature Carbon Steel Buttweld Fittings Manufacturer in India – A420 WPL6 Tee, Reducer, Elbows

An ISO 9001:2008 Certified Company, MD Exports LLP is India’s most trusted manufacturer and exporter of ASTM A420 WPL6 pipe fittings and low temperature steel fittings such as A420 WPL6 Tee, A420 WPL6 Reducer, A420 WPL6 Elbows, and A420 WPL6 End Caps. Our stock of low temperature steel fittings includes ASTM A420 WPL6 pipe fittings in a complete range of sizes and thicknesses. All raw material purchased by MD Exports LLP to manufacture ASTM A420 WPL6 fittings is fully traceable to the mill source. All fittings are manufactured in India, with raw materials coming from reputed Mills in India and overseas.

  • Brand: Raw Materials from Japanese Mills, European Mills, US Mills, Korean Mills
  • Model:1/2 inch upto 48 inch

This specification covers wrought carbon steel and alloy steel pipe fittings of seamless and welded construction for use in pressure piping and pressure vessel service at low temperatures. Materials shall consist of forgings, bars, plates, seamless or fusion welded tubular products with filler metal added, and shall be produced by open-hearth, basic-oxygen, or electric-furnace process. Forging or forming operations shall be performed by one or a combination of two or more of the following procedures: hammering, pressing, piercing, extruding, upsetting, working, bending, fusion-welding, or machining. All welding shall be completed prior to the austenitizing heat treatment, which shall be executed in the normalized, normalized and tempered, annealed, or quenched and tempered conditions. Steel specimens shall conform to required values of chemical composition, tensile strength, yield strength, elongation, wall thickness, and Charpy V-notch impact value. All fusion-welded butt joints shall undergo radiographic examination, while hydrostatic testing of fittings is not required in this specification. Repair welding shall be permissible for parts made to dimensional standards.

ASTM A420 WPL6 Pipe Fittings, Low Temperature Steel Buttweld Fittings Chemical Composition

Chemical Composition % of ASTM A420 WPL6 Pipe Fittings
  C Mn P S Si Ni Cr Mo Cu Cb V
A420 WPL6 0.3 0.050-1.35 0.035 0.04 0.15-0.40 0.4 0.3 0.12 0.4 0.02 0.08

ASTM A420 WPL6 Pipe Fittings, LTCS, Low Temperature Steel Buttweld Fittings Mechanical Properties

Mechanical Properties of Astm A420 WPL6 Pipe Fittings
Tensile Strength (KSI) Yield Strength (KSI)
60-95 35

ASTM A420 WPL6 Pipe Fittings, LTCS, Low Temperature Steel Buttweld Fittings Production Range

Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Range ½”NB to 48″NB in Sch 10s, 40s, 80s, 160s, XXS.
Dimensions ANSI/ASME B16.9, B16.28, MSS-SP-43.

Buttweld ASTM A420 WPL6 Pipe Fittings, Low Temperature Steel Pipe Fittings

Seamless/ Welded 100% Radiography Tested

Products Size
ASTM A420 WPL6 Elbows – Long Radius ASTM A420 WPL6 Stub Ends

Sizes 1/2″ – 48″

ASTM A420 WPL6 Elbows – Short Radius ASTM A420 WPL6 Crosses
ASTM A420 WPL6 Reducing Elbows ASTM A420 WPL6 Reducing Crosses
ASTM A420 WPL6 45° Elbows ASTM A420 WPL6 180° LR Return Bends
ASTM A420 WPL6 Tees ASTM A420 WPL6 180° SR Return Bends
ASTM A420 WPL6 Reducing Tees ASTM A420 WPL6 Pipe Bends / Piggable Bends
ASTM A420 WPL6 Reducers ASTM A420 WPL6 Couplings
ASTM A420 WPL6 Concentric Reducers ASTM A420 WPL6 Pipe Nipples
ASTM A420 WPL6 Eccentric Reducers ASTM A420 WPL6 Forged/Plate Cut Rings
ASTM A420 WPL6 3D Elbow ASTM A420 WPL6 End Caps
ASTM A420 WPL6 5D Elbow Low Temp. Steel Forged / Plate Circles
